| Product Type |
Floor Grate Drain
|
| SKU | 41457 |
| Code | LCWFG |

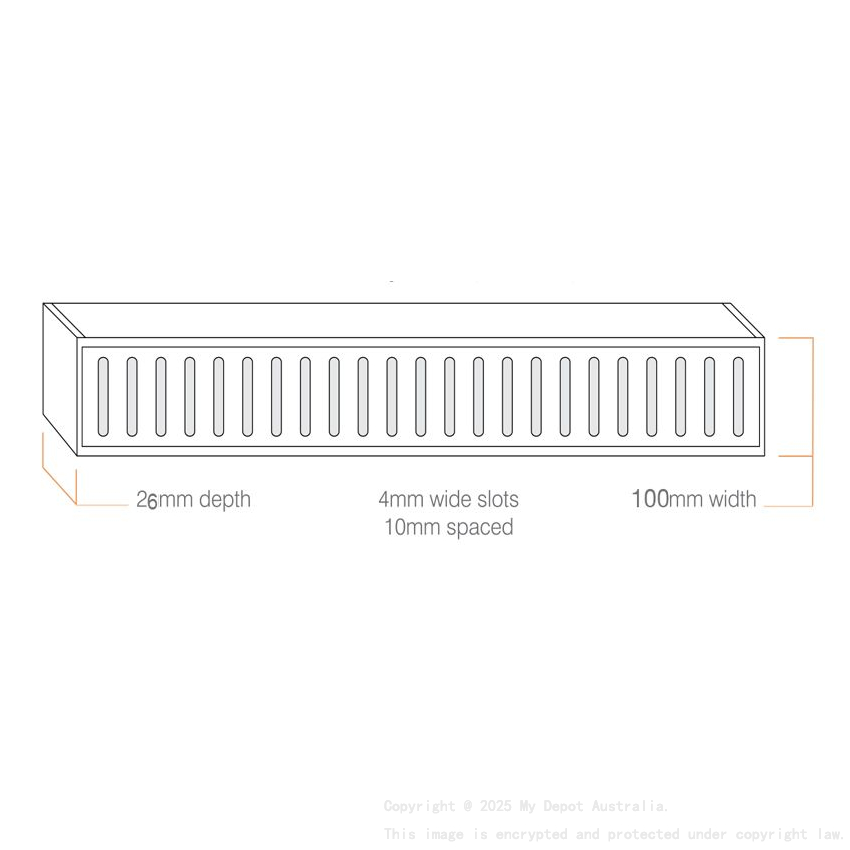

| Size(mm) | (300-5600)L x 100W x 26H |
| Color/Finish | Chrome |
-4 Waste Sizes: 40/50/72/80mm
-Color: Chrome
-Rust proof
-Lightweight

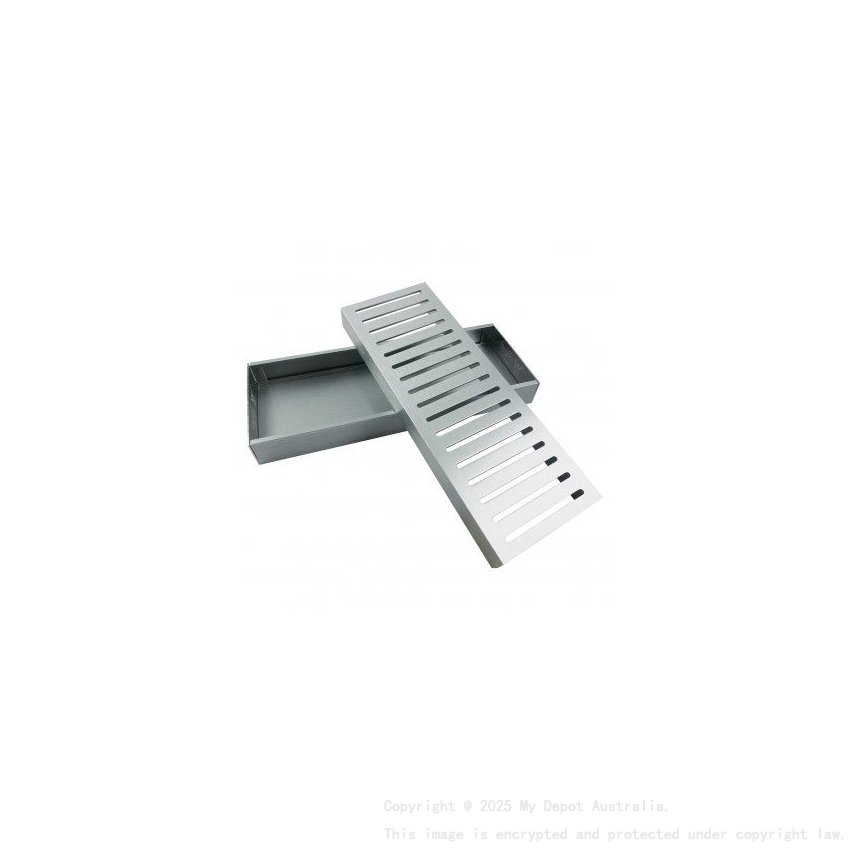

-Top grate easily removed for cleaning
-Different colour choices to suit application
-Easy to cut to desired length
-Easy to clean (easy to roll out system)
-No welding required
-No major plumbing involved as waste can be positioned anywhere along the bottom tray
-Perfect use for indoor/outdoor applications.
For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more.
A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.
1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole
Please Note:
Our 'Lauxes' shower grates are 'custom cut' to size.
As a 'Special Customer' order, item's cannot be returned once they are cut to your specified size unless there is a manufacturer's fault, defect or stock arrives damaged.
It is important to confirm size before placing your order.Thank You!
Discrepancy of the length will exist as the grates are manually cut.
Price is to be charged per every 100mm unit.
